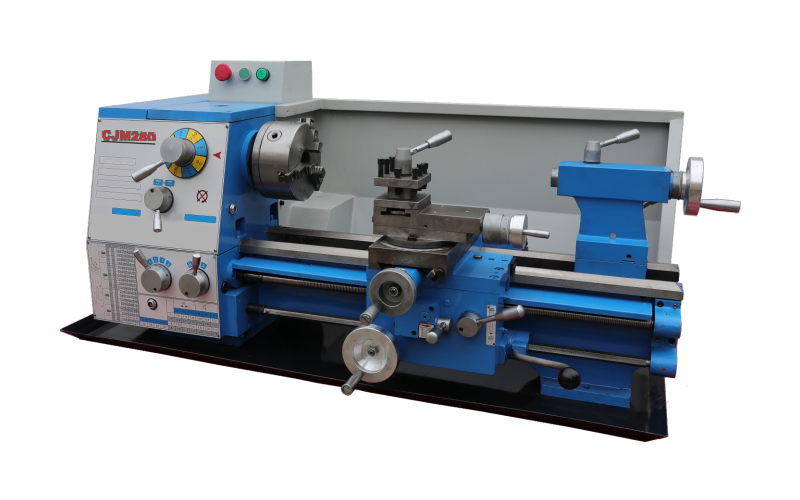

CJM280/ 500

CJM280/750

Max. swing over bed

280mm

Max. work-piece length

500mm

750mm

Max. swing over carriage

165mm

Main spindle diameter

38mm

Main spindle taper

MT. 5#

Max. cross travel of carriage

185mm

Max. travel longitudinal of toolpost

75mm

Metric threads range/ No

0.2 ~ 3. 5mm/ 18

Imperial threads range/ No

41⁄2 ~48T. P. I/ 34

Module threads range/ No

0.2 ~ 1.75M. P/ 16

Diametrical threading range/ No

16 ~ 120D. P/24

Toolpost longitudinal feeding per spindle rotation

0.05 ~0. 35mm/ r

Toolpost cross feeding per spindle rotation

0.025 ~0. 18mm/ r

Max. travel of tailstock sleeve

75mm

Tailstock sleeve taper

MT.3#

Spindle speed steps

8

Main Spindle speed scope

90 ~ 1800 rpm

Main motor power

750W

Net weights/Gross weights

260/ 300kg

270/ 320kg

Overall dimensions( L*W* H)

117×65×65cm

142×65×65cm

Packing dimensions (L*W* H)

131×77×75cm

153×77×75cm

3 -jaw chuck

Φ160

Chip tray

Machine Base

Belt

A type 762

Steady rest

Follow rest

Dead centers

MT.3#, 5#

4 -jaw chuck  Φ160/ Φ200

Flange plateΦ160/ Φ200

Chuck spanner

1  piece

Face Plate  Φ250

Thread dial indicator

Allen wrench

4#,5#,6#

Special optional change gears(9)

Live center

Stud dead

12 - 14; 17 - 19

Coolant

Work light

Changing gears

40T

Digital readout

Optional motor 1. 1/ 1. 5KW
